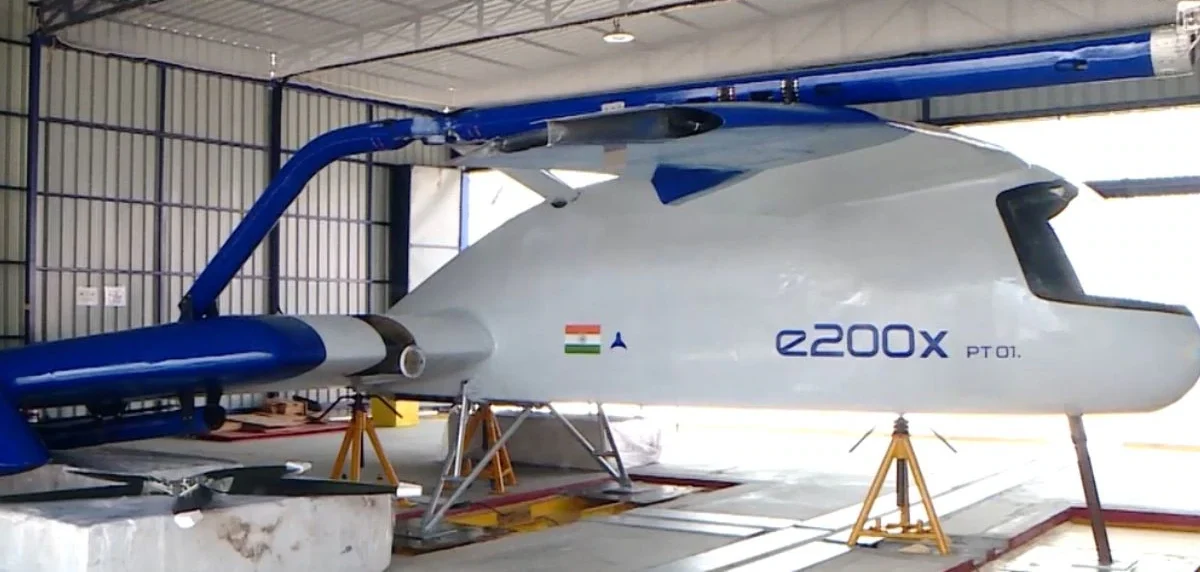

The E200X, developed at the Discovery Campus of IIT Madras, aims to transform urban transportation by offering a flying taxi solution. This aircraft is larger than it appears in photographs, featuring ten rotors—six designed for vertical lift and four for forward propulsion. Each rotor is equipped with its own motor, enhancing the aircraft’s operational capabilities. Professor Satya Chakravarthy, the founder of The ePlane Company, emphasises that the design prioritises safety, with multiple layers of redundancy to ensure reliability in various scenarios.

Professor Chakravarthy explains that the E200X is an electric vertical take-off and landing (eVTOL) aircraft, which combines the functionalities of helicopters and aeroplanes. It is powered by batteries and electric motors, allowing it to ascend vertically like a helicopter while flying horizontally like an aeroplane. The initial applications for the E200X include serving as a flying ambulance, with plans to expand into air taxi services to alleviate congestion in major cities.

The choice of ten rotors is a critical aspect of the design. The configuration allows the E200X to maintain flight even if several rotors fail, as each rotor operates independently. This design contrasts with many international models that rely on a single rotor system, which increases the risk of total failure if a critical component malfunctions.

Safety Mechanisms of the E200X

The E200X incorporates seven layers of safety, each designed to act as a backup for the previous one. The first layer involves the power train, which supplies electricity from the battery to the motors. Each motor is equipped with dual windings and dual controllers, ensuring that a single failure does not result in a total loss of lift. This redundancy is crucial for maintaining operational integrity during flight.

The second layer of safety is based on the arithmetic of rotor failure. If one of the six lifting rotors becomes inoperative, the remaining five can still sustain flight. Similarly, if one of the four forward propellers fails, the aircraft can continue to operate with the remaining three. This design philosophy significantly reduces the risk of catastrophic failure, according to Professor Chakravarthy.

In the event of multiple rotor failures, the E200X can switch to an alternative flight mode. For instance, if two or more rotors fail, the aircraft can rely on its wings for lift, allowing for a conventional landing. This versatility in flight modes enhances the overall safety of the aircraft.

Future Prospects and Regulatory Challenges

Despite the comprehensive safety features, the E200X has yet to undergo certification for passenger transport. Professor Chakravarthy notes that the layers of safety have not been quantified, and the team is working to establish failure rates for each layer. Regulatory bodies, such as Europe’s EASA, set stringent safety standards, allowing for catastrophic failures no more frequent than once in a billion flight hours for passenger air taxis.

The anticipated timeline for the E200X includes readiness for air ambulance operations by the second quarter of 2028, with air taxi services expected to follow later that year. The development team faces additional challenges specific to Indian conditions, such as ensuring the aircraft can withstand dust, rain, lightning, and bird strikes.

As the project progresses, the team is conducting rigorous testing, including subjecting the propellers to lightning tests. The E200X represents a significant step towards realising the dream of flying taxis, with a focus on safety and reliability that must be proven in actual flight conditions.
